Heavy Duty Pipe Rack

Share:

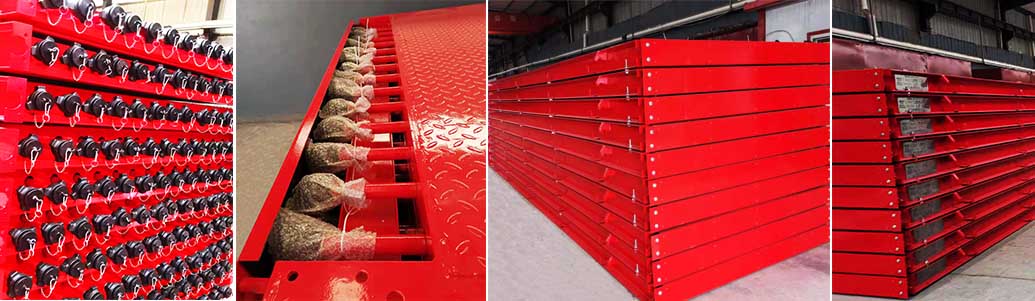

Heavy Duty Pipe Rack
  • Heavy Duty Pipe Rack
  • Heavy Duty Pipe Rack

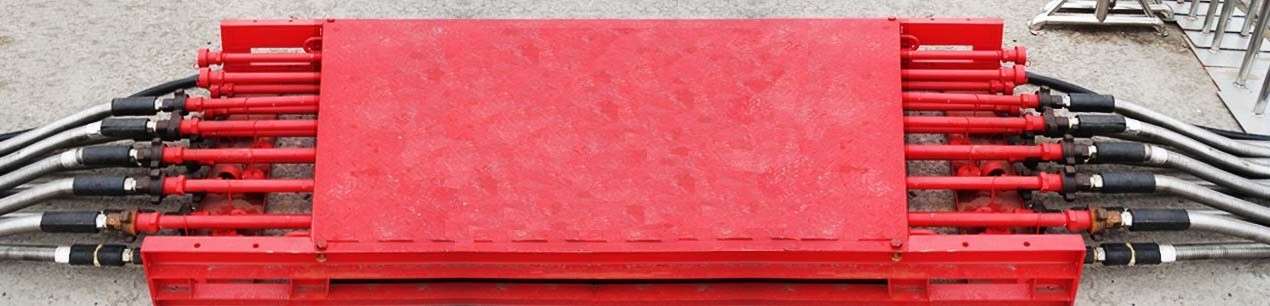

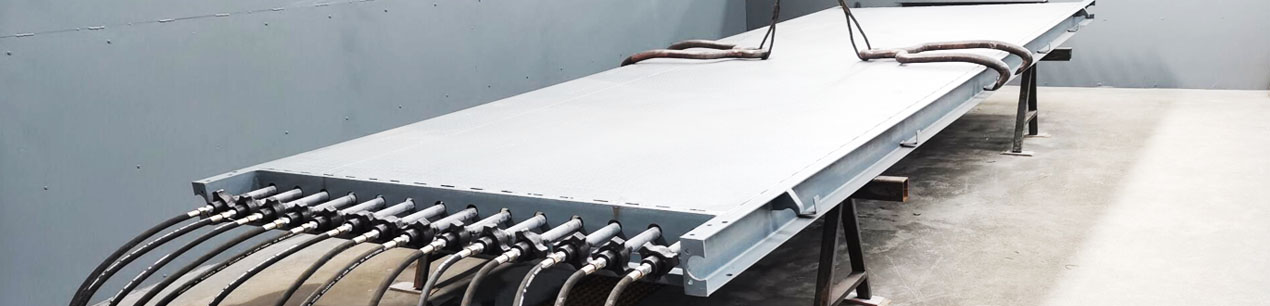

APPLICATION: to connect the BOP surface control system and BOP stack together with the flexible BOP well control lines. The heavy duty pipe rack is rigid on surface for necessary road traffic.


Products Details

APPLICATION: To connect the BOP surface control system and BOP stack together with the flexible BOP well control lines. The heavy duty pipe rack is rigid on surface for necessary road traffic. Heavy Duty Pipe RackHeavy Duty Pipe Rack


STANDARD: API Spec 16D & SY/T5053.2-2020, NACE MR 0175, ASME BPVC



TEMPERATURE. RANGE:

-29oC -+121oC


CONSTRUCTION:

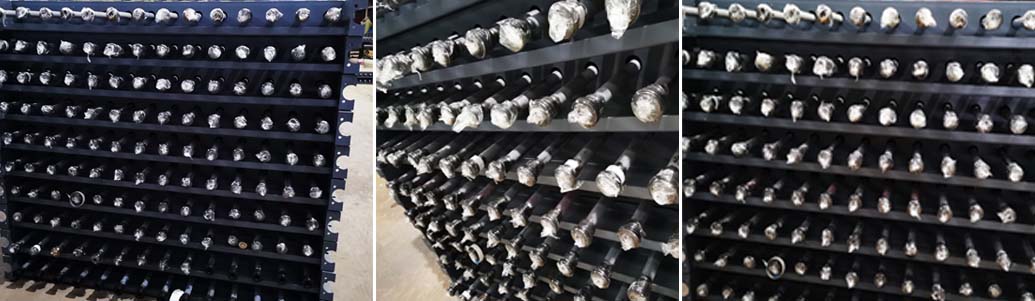

*  High pressure seamless steel pipe

*  Hammer union connection on both sides

*  Two layers layout for easy installation with corrugated steel plate

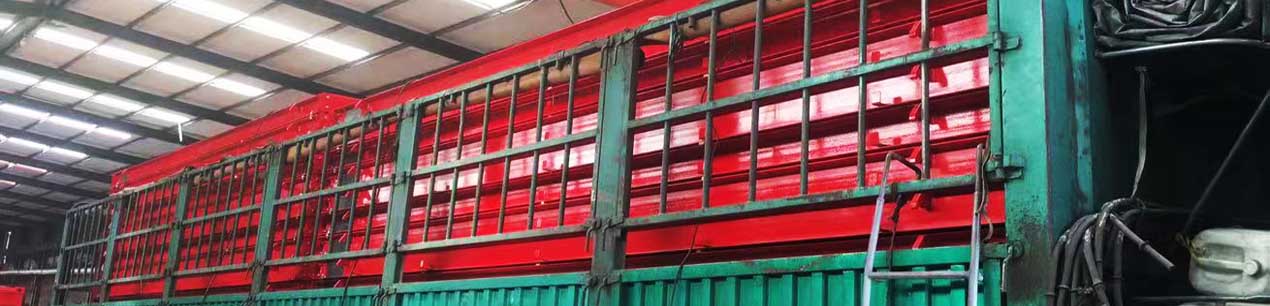

*  Back plate on both sides to protect hammer union from damage during transportation

*  1 each lifting collar on the four across corners with SWL not less than 1.5 tons


SPECIFICATION:

Heavy Duty Pipe Rack

    PART NUMBER

Heavy Duty Pipe Rack

   IMG_256  ID

IMG_256Heavy Duty Pipe Rack

             WP

IMG_256Heavy Duty Pipe Rack

       Max. TP

Heavy Duty Pipe Rack


     Length

  MM  IN   PSI    MPA PSIMPA         m
      GPJ-25X35   25   1 5000    355000  35          6
      GPJ-38X25   381-1/2 5000    355000  35          6
