Application:

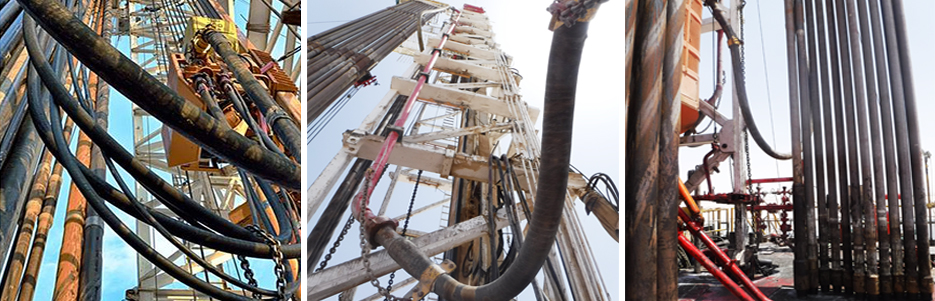

Designed to operate between 2,000 and 3,000 psi for flexible connection between main deck of platform and high pressure water systems used to break the suction between the jackup feet (spud cans) and ocean floor prior to lifting the legs.

Standards: API spec 7K / ISO

API Monogram No.: 7K-0547

TEMPERATURE:

Temperature Range I: -20℃ to +82℃ (-4 ℉to +180℉)

Temperature Range II: -20℃ to +100℃ (-4 ℉to +212℉)

FSLs: FSL 0

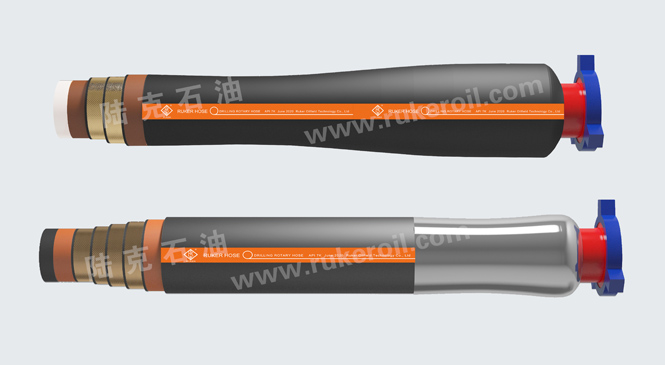

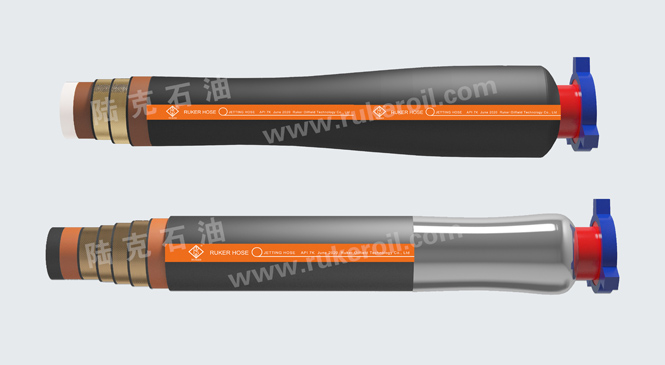

CONSTRUCTION:

Tube: Modified Nitrile. Black. resisting abrasion and corrosive cements

Reinforcement: Multiple layers of steel cable and adhesion fabric

Cover: Modified Nitrile. Black. resisting abrasion, corrosion, gouging, oil and weather

COUPLINGS: Swaged

OPTIONS: Safety clamps, hose lift eyes SS armor and polyethylene spiral guard available upon request

Type	ID		OD		WP		TP		Fire-Resistant	Safety Factor	Min Bengding Radius	Weight	Max length
	mm	in	mm	inch	psi	MPa	psi	MPa			m	kg/m	m
PZG-76X10	76	3	105	4.13	1500	10.5	2250	15.75	No	2.5	1.3	14.3	45
PZG-76X14	76	3	111	4.37	2000	14	3000	21	No	2.5	1.3	15.1	45
PZG-76X21	76	3	117	4.61	3000	21	4500	31.5	No	2.5	1.3	15.5	45
PZG-102X10	102	4	127	5	1500	10.5	2250	15.75	No	2.5	1.4	15.3	45
PZG-102X14	102	4	133	5.24	2000	14	3000	21	No	2.5	1.4	16	45
PZG-102X21	102	4	139	5.47	3000	21	4500	31.5	No	2.5	1.4	21.4	45
